Product Description

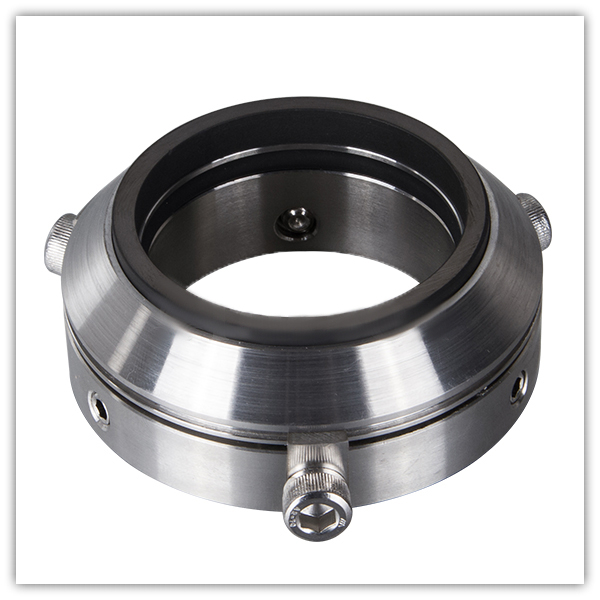

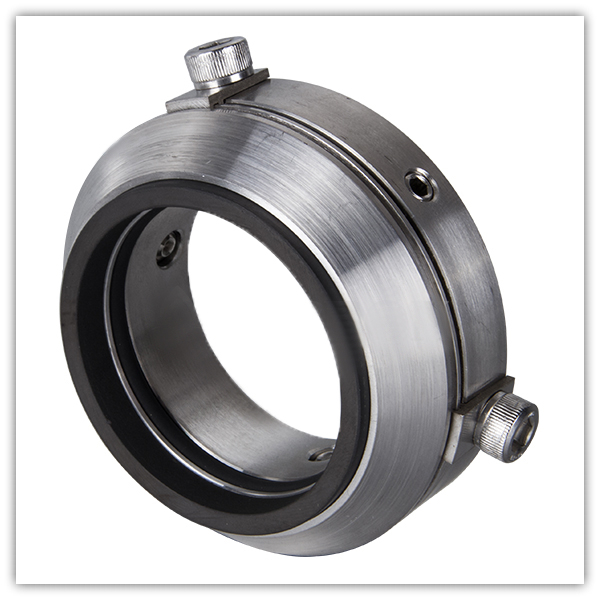

ZLL9 Cartidge Mechanical Seal replace AES CS

Description:
High quality ZL L9 Mechanical Seals
Replace the mechanical seal of Aesseal CS cartridge mechanical seal

Operational Conditions:
Temperature: -50℃ to +204℃
Pressure: ≤1.1MPa
Speed: ≤15m/s

Materials:
Rotary Ring:Resin Impregnated Carbon Graphite(Furan)
Secondary Seal:Viton,EPDM,NBR,FFKM
Spring and Metal Parts:Stainless Steel

Applications:

Clean water,
Sewage water
Oil and other moderately corrosive fluids



d(mm) L1 D4 D5
20 27.91 45.3 59.8
22 27.91 47.3 61.8
24 27.91 49.3 63.8
25 27.91 50.3 64.8
28 27.91 53.3 67.8
30 27.91 55.3 69.8
32 27.91 57.3 71.8
33 27.91 58.3 72.8
35 27.91 60.3 74.8
38 27.91 63.3 77.8
40 27.91 65.3 79.8
42 27.91 67.3 81.8
43 27.91 68.3 82.8
45 27.91 70.3 84.8
48 27.91 73.3 87.8
50 27.91 75.3 89.8
53 27.91 78.3 92.8
55 27.91 80.3 94.8
60 27.91 85.3 99.7
65 30.3 96.5 111
70 30.28 101.5 116
75 30.28 106.5 121
80 30.28 111.5 126
85 30.28 116.5 131
90 30.28 121.5 136
95 30.3 126.5 141
100 30.28 131.5 146

d(inch) L1 D4 D5
0.625” 1.098 1.622 2.192
0.750” 1.098 1.747 2.317
0.875” 1.098 1.872 2.442
1.000” 1.098 1.997 2.567
1.125” 1.098 2.122 2.692
1.250” 1.098 2.247 2.817
1.375” 1.098 2.372 2.942
1.500” 1.098 2.497 2.067
1.625” 1.098 2.622 3.192
1.750” 1.098 2.747 3.317
1.875” 1.098 2.872 3.442
2.000” 1.098 2.997 3.567
2.125” 1.098 3.122 3.692
2.250” 1.098 3.247 3.817
2.375” 1.098 3.372 3.942
2.500” 1.098 3.497 4.067
2.625” 1.192 3.866 4.436

2.750”
1.192 3.991 4.561
2.875” 1.192 4.116 4.686
3.000” 1.192 4.241 4.811
3.125” 1.192 4.366 4.936
3.250” 1.192 4.491 5.061
3.375” 1.192 4.616 5.186
3.500” 1.192 4.741 5.311
3.625” 1.192 4.866 5.436
2.750” 1.192 4.991 5.561
2.875” 1.192 5.116 5.686
4.000” 1.192 5.241 5.811
