Product Description

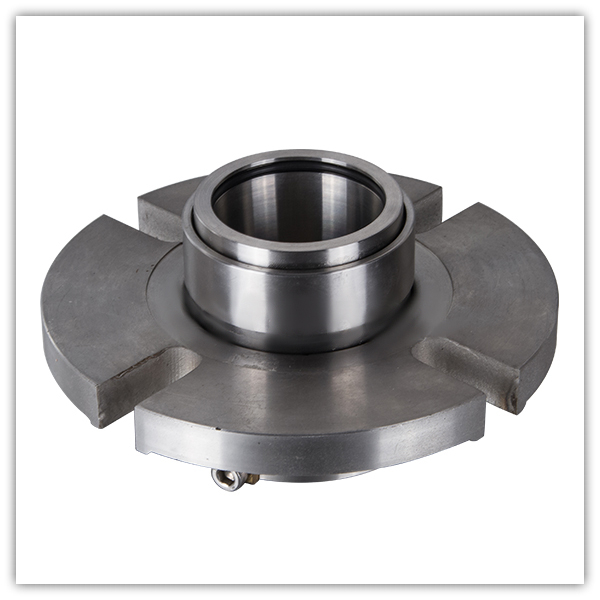

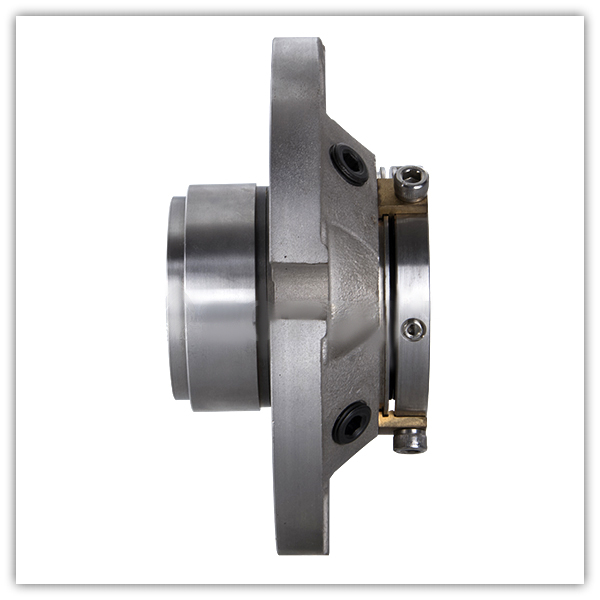

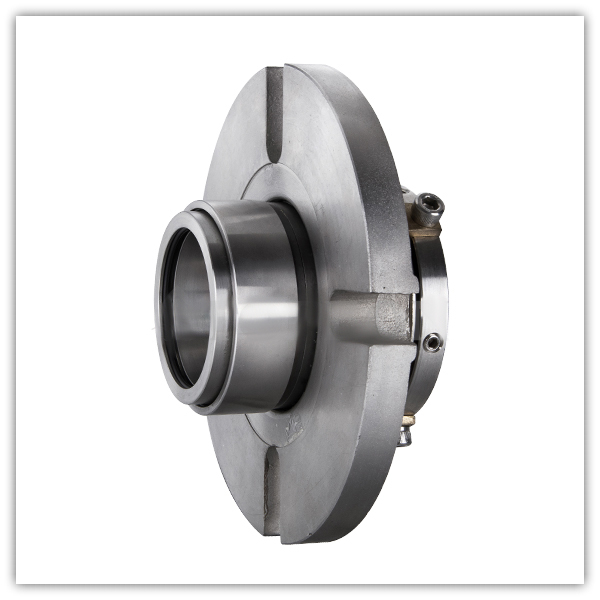

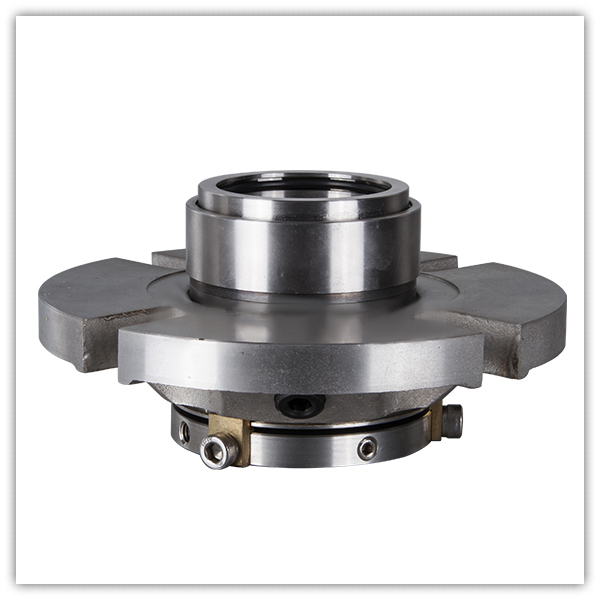

ZLGU1 Cartridge Mechanical Seal replace AES CURC

Description:

ZL GU 1 Mechanical Seals Replace the mechanical seal of Aesseal CURC cartridge mechanical seal

Operational Conditions:

Temperature: -20℃ to +210℃
Pressure: ≤2.5MPa
Speed: ≤15m/s

Materials:

Stationary Ring：Silicon Carbide, Carbon ,TC,
Rotary Ring：Carbon ,Silicon Carbide,TC
Secondary Seal：EPDM,Viton,Afias ,kalrez
Spring and Metal Parts：Steel

Applications:

Clean water,
Sewage water
Oil and other moderately corrosive fluid

d(mm)	D5	D7	D8	L3	D4		W		L1	L2
d(mm)	D5	D7	D8	L3	min	max	min	max	L1	L2
24	104.8	54	49.2	132	40	46	67	90.5	28.6	40.5
25	104.8	54	492	13.2	41	49	67	90.5	28.6	40.5
28	108	57.2	52.4	132	44	52.3	70.3	93.6	28.6	40.5
30	111	60.4	55.6	13.2	46	55.5	73.5	96.8	28.6	40.5
32	111	60.4	55.6	13.2	48	55.5	73.5	96.8	28.6	40.5
33	111	60.4	55.6	13.2	49	55.5	73.5	96.8	28.6	40.5
35	111	635	58.8	13.2	51	57.5	76.6	96.8	28.6	40.5
38	127	71.5	65	16.4	57.2	60.4	85.7	114.3	28.6	44.5
40	127	71.5	65	16.4	58	60.4	85.7	114.3	28.6	44.5
43	139.7	81	71.4	16.4	61	69.9	95.3	127	28.6	44.5
45	139.7	81	71.4	16.4	63.5	69.9	95.3	127	28.6	44.5
48	139.7	81	71.4	16.4	66.7	73	95.3	127	28.6	44.5
50	152.4	90.5	77.8	16.4	68	762	104.8	139.7	28.6	44.5
53	152.4	90.5	77.8	164	71	76.2	104.8	139.7	28.6	44.5
55	165.1	96.8	84.1	16.4	74	82.5	1143	149.2	28.6	44.5
58	165.1	96.8	84.1	16.4	76.2	82.6	114.3	149.2	28.6	44.5
60	165.1	96.8	84.1	16.4	79.4	85.7	114.3	149.2	28.6	44.5
63	177.8	109.5	96.8	19.6	85.8	92.1	127	160.3	31.8	47.7
65	177.8	109.5	96.8	19.6	88.9	95.3	127	160.3	31.8	47.7
68	177.8	109.5	96.8	196	92.1	98.4	127	160.3	318	47.7
70	177.8	109.5	96.8	19.6	92.1	98.4	127	160.3	31.8	47.7
75	190.5	125.4	108	19.6	98.5	108	142.9	173	31.8	47.7
80	190.5	125.4	108	19.6	101.6	111.1	142.9	173	31.8	47.7
85	203.2	135	117.5	19.6	108	117.5	155.6	182.5	31.8	47.7
90	215.9	150.8	127	19.6	114.3	127	171.5	195.2	31.8	47.7
95	2159	1508	127	19.6	117.5	1302	1715	195.2	31.8	47.7
100	228.6	168.3	136.5	19.6	123.9	139.7	188.9	207.9	31.8	47.7
105	228.6	168.3	136.5	19.6	130.1	149.2	189	208	31.8	47.7
110	241.3	177.8	146.1	19.6	136.5	158.8	198.4	220.6	31.8	47.7
115	254	186.6	155.6	19.6	142.9	168.3	211.1	230.2	31.8	47.7
120	254	186.6	155.6	19.6	142.9	168.3	211.1	230.2	31.8	47.7
125	254	1866	155.6	196	142.9	168.3	211.1	2302	31.8	47.7
